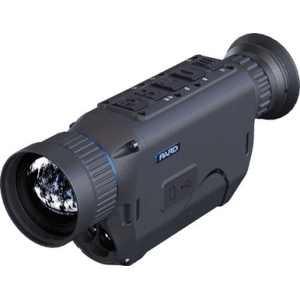

Continuing the legacy the Bobcat (640) is lightweight ergonomically friendly and provides cutting-edge optics through state-of-the-art electronics. Equipped with an all-new generation sensor (NETD 18mk) the Bobcat detects even the smallest thermal differences with ease and delivers exceptional imagery to the end user. The 1920x1080 OLED display offers enhanced brightness sharper resolution and superior contrast compared to traditional LCD screens. Whether you're in the field or on the move it's built to go anywhere without slowing you down. Compact. Capable. Ready. - General - Model Bobcat 640 Classification Thermal Imaging monocular - Sensor - Sensor Type Uncooled VOx (vanadium oxide) - 640 Sensor Resolution(pixel) 640*512 - Pixel size(um) 12*12 - Sensitivity(lux) 18mK 0.018c - Frame rate(Hz) 50 - Frame rate(Hz) 1800 - Optics - Objective lens(mm) 35 - 640 Optical Magnification(x) 2.6 - Digital zoom(x) 2/4/6/8 - 640 Horizontal Field of view() 12.5 - 640 Vertical Field of view() 10 - 640 Diagonal Field of view() 16 - 640 Horizonal Field of view (m @100m) 21.9 - 640 Vertical Field of view (m @100m) 17.6 - Focus range 3m-Infinity - Diopter adjustment(D) 5D - Display - Display Type OLED - Display Resolution(pixel) 1920*1080 - Image mode WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY - Video/Photo - Photo Resolution(pixel) 1440*1080 - Photo Format .JPG - Video Resolution(pixel) 1440*1080 - Video Format .mp4 - Main function - LRF/m 1000 - Compass Yes - PIP Yes - Auto recording Yes - Loop recording Yes - Time stamp Yes - Record audio Yes - Storage(GB) Micro SD card (Max. 128GB) - Connections - USB Type-C Yes - WiFi Yes - Supported Apps PardVision2 - Power Supply - Battery type Li-ion Battery 18650*1 - Output voltage(V) 3.7 - Output voltage(V) 6 - External power supply Type-C - Material - Housing AL6061 & Composite - Objective lens All-glass multi-coated lens - Measurement - Product dimension(L x W x H mm) 170*70*43 - N.W/pcs(with battery g) 405
